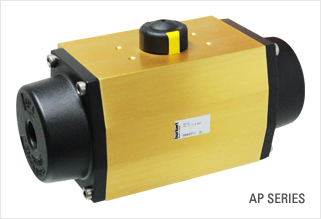

Pressure range :
2 bar ( 29 psig ) to 8 bar ( 116 psig ) double acting
3 bar ( 44 psig ) to 8 bar ( 116 psig ) spring return
max. working pressure 10 bar ( 145 psig ). |
|
|
 |
Media :
filtered dry - or lubricated air. For non corrosive gas
water or light hydraulic oil please check with the
technical department. |
|
|
 |

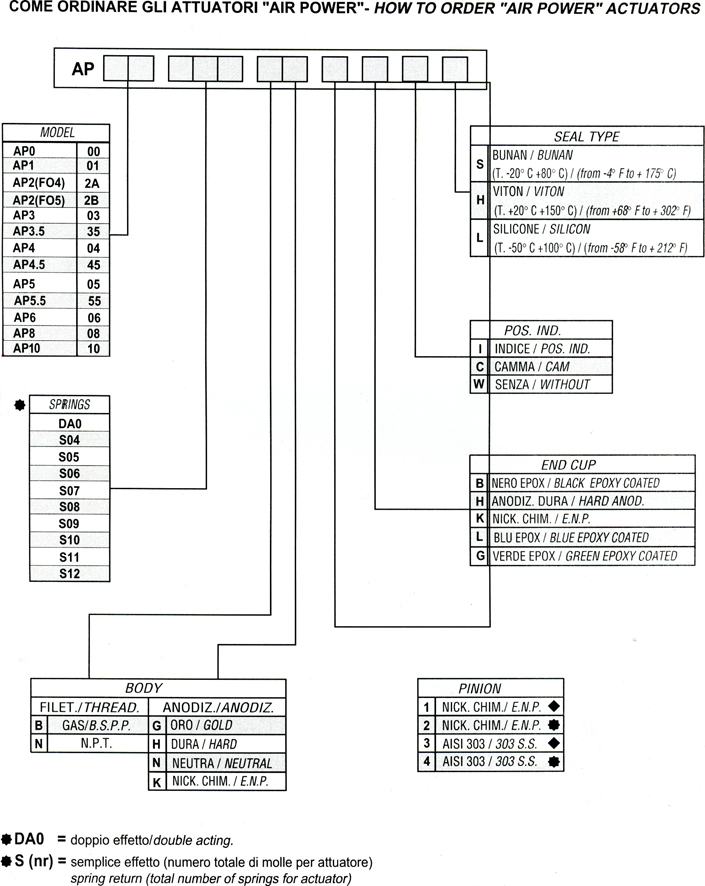

Temperature range:
STD -20¡ÆC (-4¡ÆF) a + 80¡ÆC (175¡ÆF)
+20¡ÆC (+68¡ÆF) a +150¡ÆC (302¡ÆF)
o n r e q u e s t - 50¡ÆC (-58¡ÆF) a +100¡ÆC (212¡ÆF). |
|
|
 |

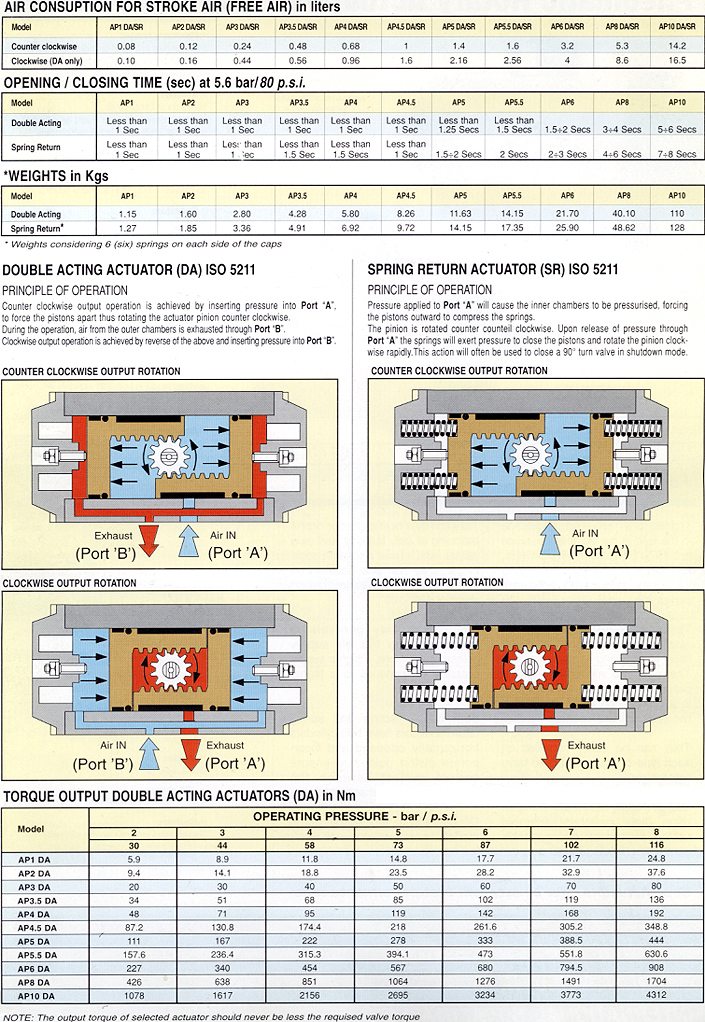

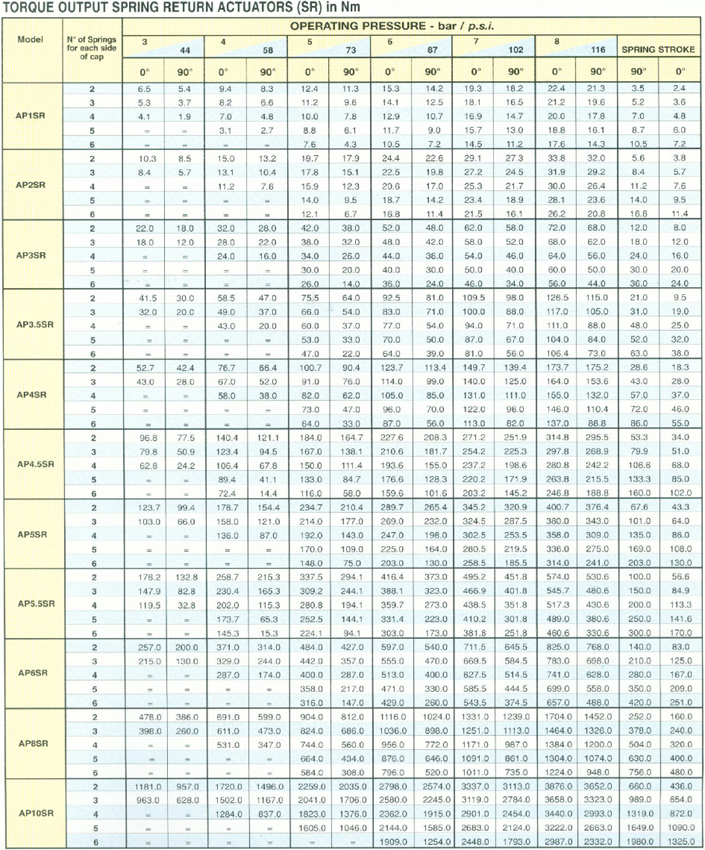

Rotation :
counterclockwise when Port'A' is pressurized;
clockwise when PORT 'B' is pressurized and
for spring return actuators (see principle of
operation). |
|
|
 |
Stroke : 90¡Æ with standard adjustment + 3¡Æ or - 3¡Æ. |
|
|
 |
Lubrication : all moving parts are factory lubricated for cycle life of the actuator. |
|
|
 |
Construction : suitable for indoor and outdoor installation. |
|
|
 |

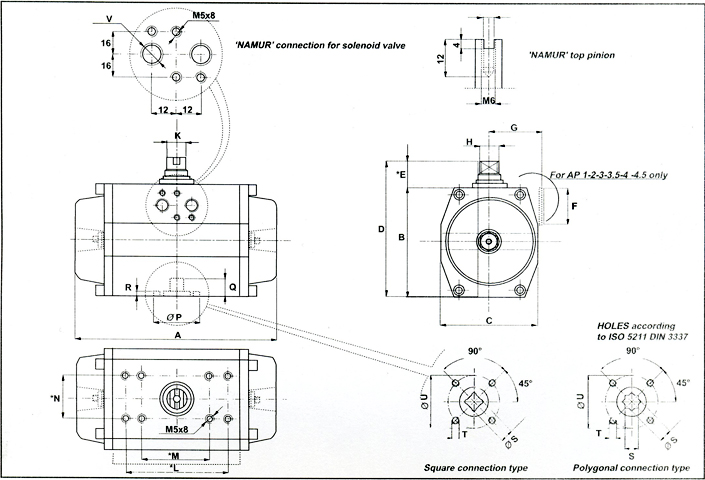

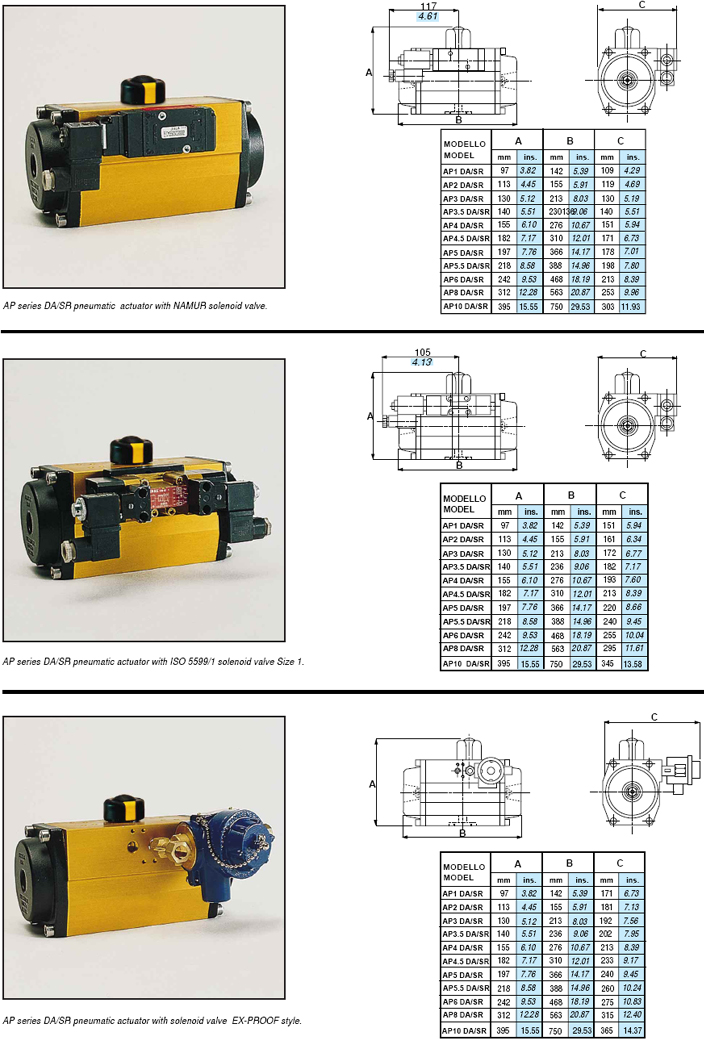

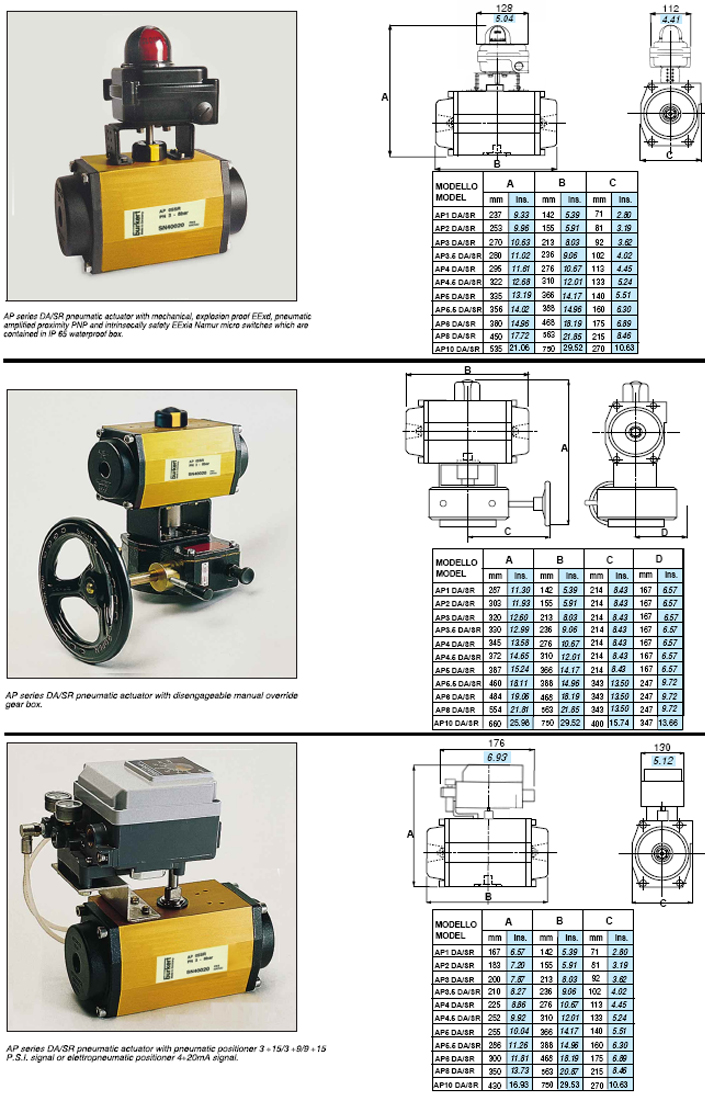

Connections : bottom drilling to match valve is in accordance with ISO 5211/DIN 3337 Interface for solenoid valve, shaft top end and top drilling to assemble accessories are in accordance with VDI / VDE 3845, NAMUR. |
|
|
 |
Inspection : each unit is hydraulically tested and certified and guaranteed for a minimum of 500.000 moves. |
