Max Design Press : 24kg/cm2
Max Design Temp : 220℃
Service Name : Nylon Chip, Polyester Chip, Powder, and Other
Pneumatic operated Air press : 4kg/cm2~ 7 kg/cm2
Pneumatic Accessories
  - Solenoid Valve
- Limit Switch
- Speed Controller
- Airset
- POSITIONER(E/P, P/P)
Manual Hand wheel, Gear Operated
Motor Operated

Class Body (A.T.P)
Jis 10K 15kg/cm2
ANSI 150lb/in2 21kg/cm2

Part Name / Material Quantities
Stainless Steel Cast Steel
Body, Flange Piece, CAP
SCS 13 SCS14 SCPH 2
Ball
SCS 13 SCS14 SCS 13
Steam
SUS 304 SUS 316 SUS 304
Gasket
NBR
Piece Bolt & Other Bolt
SUS 304 SUS 304 S25C

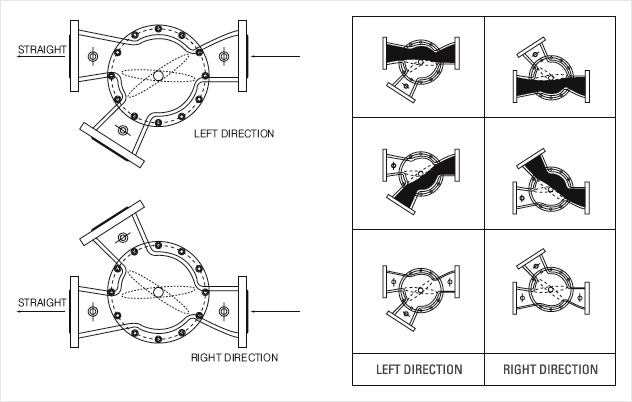

Valve
size

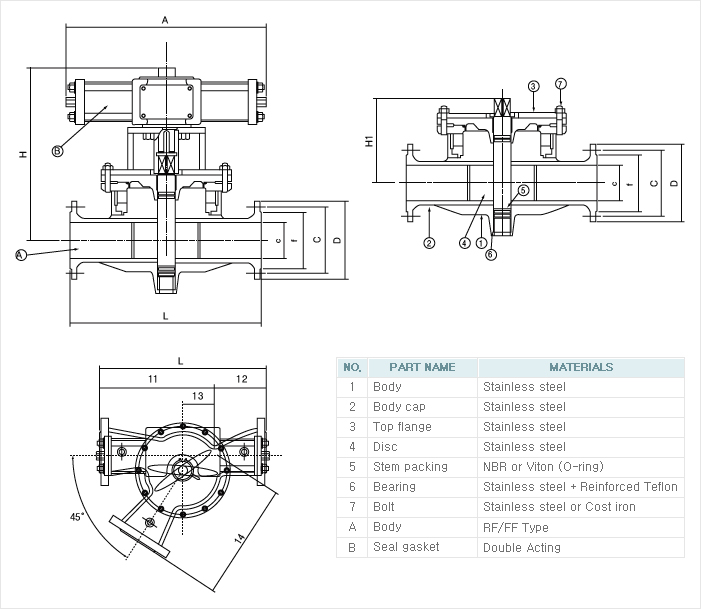

d A ℓ1 ℓ2 ℓ3 ℓ4 L H Cylinder
size
FLANGE
D g C n h t Standard
2B
50A
51 150 220 70 75 220 290 280 AP2DA 155 100 120 4 19 15.9 JIS 10K
152 120.6 ANSI 150Lb
2½B
65A
64 150 250 80 83 250 330 300 AP2DA 175 120 140 4 19 17.5 JIS 10K
178 139.7 ANSI 150Lb
3B
80A
76 204 250 100 75 255 350 350 AP3DA 185 130 150 8 19 19.1 JIS 10K
191 152.4 ANSI 150Lb
4B
100A
102 204 320 100 120 320 400 400 AP3DA 210 155 175 8 19 23.9 JIS 10K
229 190.5 ANSI 150Lb
5B
125A
127 230 360 110 125 360 470 460 AP3.5DA 250 185 210 8 23 23.9 JIS 10K
254 215.9 ANSI 150Lb
6B
150A
152 271 410 110 130 410 520 480 AP4DA 280 215 240 8 23 25.4 JIS 10K
279 241.3 ANSI 150Lb
8B
200A
203 305 596 110 170 596 750 590 AP4.5DA 330 215 290 12 23 28.8 JIS 10K
343 298.4 ANSI 150Lb
10B
250A
254 360 640 140 250 640 780 640 AP5DA 403 245 355 12 28 30.2 JIS 10K
361.9 ANSI 150Lb
12B
300A
303 380 700 140 300 700 800 690 AP5.5DA 483   400 12 28 31.8 JIS 10K
432 ANSI 150Lb
