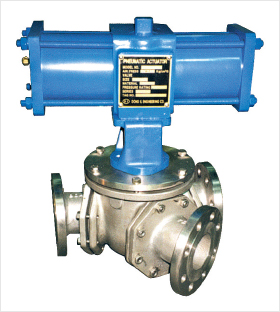

Max Design Press : 24kg/cm2
Max Design Temp : 220℃
Service Name : Nylon Chip, Polyester Chip, Powder, Water, Oils and Other Sludge
Pneumatic operated Air press : 4kg/cm2~ 7 kg / cm2
Pneumatic Accessories
  - Solenoid Valve
- Limit Switch
- Speed Controller
- Airset
Manual Hand wheel, Gear Operated
Motor Operated

Class Body (A.T.P) Seat (A.T.P)
Jis 10K 15kg/cm2 6kg/cm2
ANSI 150lb/in2 21kg/cm2

Part Name / Material Quantities
Stainless Steel Cast Steel
Body, Flange Piece, CAP
SCS 13 SCS14 SCPH 2
Ball
SCS 13 SCS14 SCS 13
Steam
SUS 304 SUS 316 SUS 304
Seat Ring, Gasket
Teflon (Glass 15%) SUS 304
Piece Bolt & Other Bolt
SUS 304 SUS 304 S25C

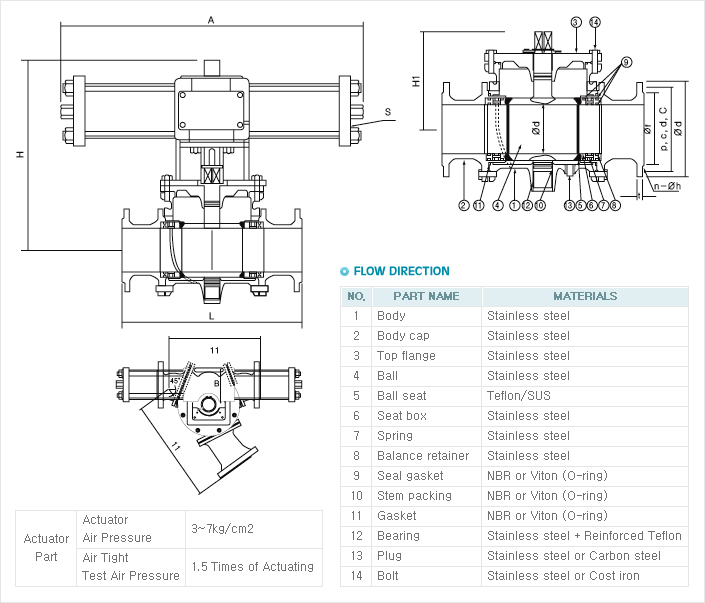

Valve
size
d L ℓ1 ℓ2 H1 Lengh of
Handle
H A B S Cylinder
size
FLANGE
D g C n h t Standard
1B
25A
25 230 180 65 115 220 300 320 95.5 PT¼ 63DA 125 70 90 4 19 14 18 JIS 10K
108 51 79.5 16 11.5 ANSI 150Lb
1½B
40A
38 250 199 74 125 220 350 360 95.5 PT¼ 80DA 140 85 105 4 19 16 20 JIS 10K
127 73 98.5 16 14.5 ANSI 150Lb
2B
50A
51 280 224 84 145 300 360 460 127.5 PT¼ 100DA 155 100 120 4 19 16 20 JIS 10K
152 92 120.5 20 16 ANSI 150Lb
2½B
65A
64 320 264 104 160 350 380 560 127.5 PT¼ 125DA 175 120 140 4 19 18 22 JIS 10K
178 105 139.5 20 17.5 ANSI 150Lb
3B
80A
76 360 291 111 175 550 470 560 149.5 PT¼ 125DA 185 130 150 8 19 18 22 JIS 10K
191 127 152.5 4 20 19.5 ANSI 150Lb
4B
100A
102 460 384 154 210 700 510 620 188.5 PT¼ 140DA 210 155 175 8 19 18 24 JIS 10K
229 157 190.5 20 24 ANSI 150Lb
5B
125A
127 560 483 203 245 1000 570 750 188.5 PT¼ 160DA 250 185 210 8 23 20 24 JIS 10K
254 186 190.5 24 ANSI 150Lb
6B
150A
152 660 547 217 275 1200 590 750 228.5 PT⅜ 160DA 280 215 240 8 23 22 26 JIS 10K
279 216 241.5 25.5 ANSI 150Lb
8B
200A
203 800 677 277 -   690 800 275 PT⅜ 200DA 330 265 290 12 23 22 26 JIS 10K
343 269 298.5 8 29 ANSI 150Lb
10B
250A
254 950 805 330 -   770 1000 630 PT½ 250DA 400 325 355 12 25 24 30 JIS 10K
406 323 361.9 26 30.5 ANSI 150Lb
12B
300A
305 1100 1024 474 -   960 1100 782 PT¾ 300DA 445 370 400 16 25 24 32 JIS 10K
482 381 431.8 12 26 31.8 ANSI 150Lb
