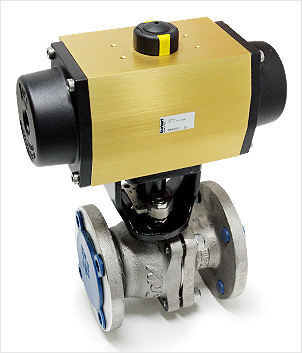

| Model No. : |
DI-AP D/S BA
304 Stainless Steel Steel Body
Carbon Steel Body |
|
|
|
|
Design Description :
Actuators : Cylinder & Diaphragm
Valve Size : 15A ~ 400A (1/2B~16B) |
| |
| Pressure Rating : |
KS 10K ~ 63K
ANSI 150LB ~ 2500LB |
|
| |
Connection : Flanged, Welding
Operating Temperature : -50 °C~220 °C |
| |
| Materia. : |
Body : SCPH2, SSC13A, SSC19A, SSC19A PVC
Ball : SSC13A, SSC19A
Seat : PTFE, RPTFE, Metal Seat |
|
|
|
|
 |
 |
|
 |
|
 |
|
|
 |
|
Water Disribution Pipes
Industrial Cleaning Machines
Sterillzers, Boilers
Air conditioners, Water Fiters
Medical Equpments, Vacuum Packing
Food & Beverage Lines
Vacuum Distribution Pipes |
|
|
 |
|
| TYPE |
A -TYPE |
B-TYPE |
| VALVE_ SIZE |
8A ~ 50A |
15A ~ 300A |
| ACTUATOR |
DI-AP TYPE |
DI-AP TYPE |
| BODY Material |
SUS 316 |
SCPH2/SCS13/SCS14/SCS16 |
| BALL Material |
SUS 316 |
SCS13/SCS14/SCS16 |
| SEAT Material |
RTFE |
PTFE, RTFE, GRAPHITE, PEEK, METAL |
| Rating Type |
SCREW |
R.F FLANGE TYPE |
| ACTUATOR Type |
DOUBLE ACTING / SPRING RETURN |
| Operating Pressure |
4-7㎏f/㎝２ |
| Rotating Angle |
90′± 3' |
| Fluid Temperature |
10 ~ 90℃ (-20 ~ 290'C) |
| Operating Media |
Compressed Dry Air |
| Accessory (옵션) |
Solenoid valve, Limit switch (Box,Lever) Air Set, E-P Positioner |
|
|
|
 |
|
|
 |
|
|
