(Unit:mm)
Valve size
(inch)
L (ANSI CLASS) ¨ª D H (Body Center to Actuator Upper)
150 RF 300 RF 600 RF 900 RF 1500 RF ANSI 600 ANSI 900 ANSI 1500
¨ö 184 190 203 273 273 218 375 395 400
¨ú 184 194 206 273 273 218 375 395 400
1 184 197 210 273 273 267 450 465 470
1 ¨ö 222 235 251 311 311 267 500 515 520
2 254 267 286 340 340 267 500 515 520
2 ¨ö 276 292 311 365 375 350 630 650 660
3 298 318 337 387 406 350 635 655 665
4 352 368 394 464 483 350 660 680 690

Port Size 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
Travel 15 15 15 15 15 15 15 15 15 20 20 25 20 25 20 25 25 38 25 38 38 50
Contoured 0.4 0.6 0.8 1.0 1.6 3 6 9 14 18 24 32 40 46 50 58 68 84 98 130 180 240
On-off 5 8 11 16 20 5 8 11 16 20 26 34 44 48 54 60 74 90 106 138 190 250
¡Ø Note : Face to face dimensions conform to IES 534-3:1976 Specifications.

Valve Type 2 WAY GLOBE for Top Single Seated(With Standard Bonnet)
Size Body inch ¨ö ¨ú 1 1 ¨ö 2 2 ¨ö 3 4
mm 15 20 25 40 50 65 80 100
Port inch ¨ö ¨ú 1 1 ¨ö 2 2 ¨ö 3 4
mm 15 20 25 40 25 65 80 100
Rated Travel (mm) 15 15 20 20 58 25 38 38
CV Value Contoured 6 9 18 40 60 68 130 180
Contoured 8 11 20 44 1.6 74 138 190
Allowable Pressure
Drop (§¸f/§²)
Nor. 5.6 4.2 6.3 2.7 11.1 1.7 1.2 0.7
Max. 39.0 29.0 40.0 14.1   12.3 8.7 4.9
Rangeability
30:1
Applicable Pressure
KS(JIS) 10 ~ 63 §¸f/§²
ANSI 150 ~ 1500 psi
DIN 5 ~ 40 bar
Applicable Temperature
-10 ~ 300¡É
End Connection
R.F & F.F Flanged, Socket Welding, Butt Welding, Threaded, Etc
Material
Body
SCPH 2(A216 WCB), SCS 13(A351 CF8), SCS 14(A351 CF8M), Etc
Trim
STS 316(A276 TY316), STC 316-Stellite Hardfacing, Etc
Packing
V-PTFE, Graphite, Etc
Gasket
STS 304+PTFE or Graphite Sprial Wound Ring
Type of Bonnet
Plane
Flow Characteristics
Equal%, Linear, Quick Open, Etc
Seat Leakage Rate
Matal seat : ANSI B 16.104 IV(Less Then 0.01% of Cv Value)
Soft seat : ANSI B 16.104 VI(Less Then 0.0001% of Cv Value)
Actuator
Type
Mulit Spring for Single Acting Diaphragm Pneumatic Actuator
Action
Direct or Reverse Action
Size (Travel)
¨ª220(15), ¨ª270(15, 20), ¨ª350(20, 25) ¨ª470(25, 38, 50, 75)
Spring Range
0.2 ~ 1.0 or 0.8 ~ 2.4 (§¸f/§²)
Ambient Temperature
-30¡É ~ +70¡É
Air Connection
PT ¨ù" Female Tap
Hand Wheel
Top Mounted, Side Mounted
Hysteresis
Without Positioner : Within 3% / With Positioner : Within 1%
Linearity
Without Positioner : Within ¡¾5% / With Positioner : Within ¡¾1%
Accessory
Option
Positioner
Electric per Pneumatic(E/P), Pneumatic per Pneumatic (P/P)
Air Set
Filter & Regulator
Solenoid V/V
3 Way 2 Port Seat Type Explosion Proof or Water Proof
Position Indicator S/W
Single Pole Double Through(SPDT), Double Pole Double Through(DPDT), Type Explosion Proof or Water Proof
Other Option
Air Lock Valve, Volume Booster Relays, Motion Transmitter, Current to pressure(E/P), Transmitter, Lubricator/lsolating valve, Other



(Unit:mm)
Valve size
(inch)
L (ANSI CLASS) ¨ª D H (Body Center to Actuator Upper)
150 RF 300 RF 600 RF 900 RF 1500 RF ANSI 600 ANSI 900 ANSI 1500
1 ¨ö 222 235 251 311 311 267 500 515 520
2 254 267 286 340 340 267 500 515 520
2 ¨ö 276 292 311 365 375 350 630 650 660
3 298 318 337 387 406 350 635 655 665
4 352 368 394 464 483 350 660 680 690
5 403 473 457 587 632 470 860 880 890
6 451 473 508 600 692 470 955 975 985
8 543 568 610 781 838 470 1090 1110 1140
10 673 708 752 864 991 470 1120 1150 1190
12 737 775 819 1016 1130 620 1335 1365 1415
14 889 927 972 1257 1257 620 1390 1420 1480

Body Size 1 1/2 4 2 1/2 3 4 5 6 8 10 12 14
Port Size 1 ¨ù 1 ¨ö 1 ¨ö 2 2 2 ¨ö 2 ¨ö 3 3 4 4 5 5 6 6 8 8 10 10 12 12 14
Travel 20 20 25 25 25 25 38 38 38 38 50 50 50 75 75 75 100 100 100 100 100 100
Contoured 24 40 46 58 58 68 84 130 130 180 240 280 280 480 480 660 800 1200 1200 1600 1600 2000
On-off 26 44 48 60 60 74 90 138 138 190 250 300 300 500 500 700 840 1250 1250 1680 1680 2100
¡Ø Note : Face to face dimensions conform to IES 534-3:1976 Specifications.

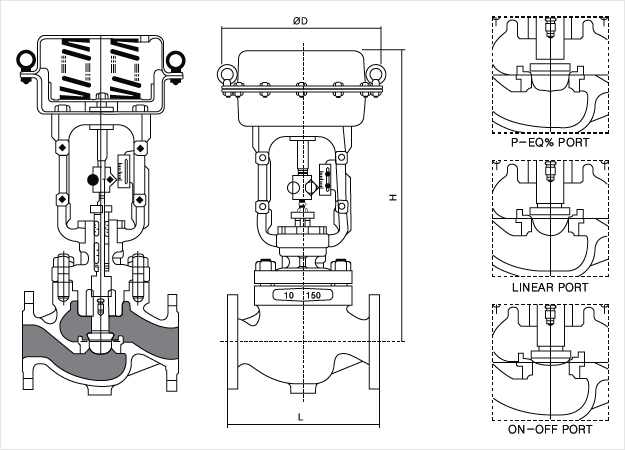

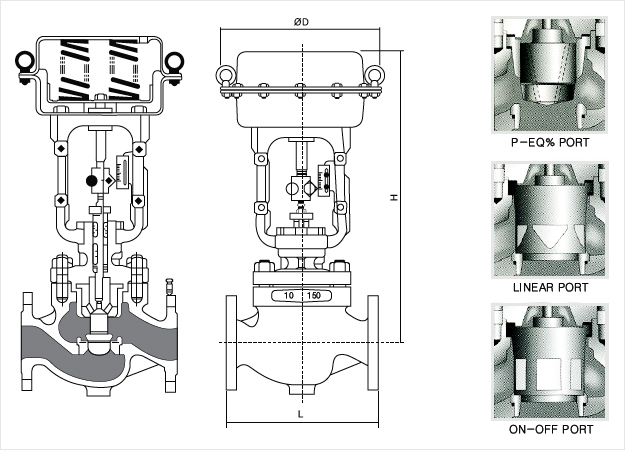

Valve Type 2 WAY GLOBE for Pressure-Balanced Cage
Size Body inch 1 ¨ö 2 2 ¨ö 3 4 5 6 8 10 12 14
mm 40 50 65 80 100 125 150 200 250 300 350
Port inch 1 ¨ö 2 2 ¨ö 3 4 5 6 8 10 12 14
mm 40 50 65 80 100 125 150 200 250 300 350
Rated Travel (mm) 20 25 25 38 38 50 75 75 100 100 100
CV Value Contoured 40 58 68 130 180 280 480 660 1200 1600 2000
Contoured 44 60 74 138 190 300 500 700 1250 1680 2000
Allowable Pressure
Drop (§¸f/§²)
Nor. 9.9 7.7 11.7 9.7 7.4 6.3 5.2 7.4 6.1 5.1 3.7
Max. 40 40 40 40 40 40 36.7 40 15 13 9.6
Rangeability
30:1
Applicable Pressure
KS(JIS) 10 ~ 63 §¸f/§²
ANSI 150 ~ 1500 psi
DIN 5 ~ 40 bar
Applicable Temperature
-10 ~ 300¡É
End Connection
R.F & F.F Flanged, Socket Welding, Butt Welding, Threaded, Etc
Material
Body
SCPH 2(A216 WCB), SCS 13(A351 CF8), SCS 14(A351 CF8M), Etc
Trim
STS 316(A276 TY316), STC 316-Stellite Hardfacing, Etc
Packing
V-PTFE, Graphite, Etc
Gasket
STS 304+PTFE or Graphite Sprial Wound Ring
Type of Bonnet
Plane
Flow Characteristics
Equal%, Linear, Quick Open, Etc
Seat Leakage Rate
Matal seat : ANSI B 16.104 IV(Less Then 0.05% of Cv Value)
Soft seat : ANSI B 16.104 VI(Less Then 0.0001% of Cv Value)
Actuator
Type
Mulit Spring for Single Acting Diaphragm Pneumatic Actuator
Action
Direct or Reverse Action
Size (Travel)
¨ª220(15), ¨ª270(15, 20), ¨ª350(20, 25) ¨ª470(25, 38, 50, 75)
Spring Range
0.2 ~ 1.0 or 0.8 ~ 2.4 (§¸f/§²)
Ambient Temperature
-30¡É ~ +70¡É
Air Connection
PT ¨ù" Female Tap
Hand Wheel
Top Mounted, Side Mounted
Hysteresis
Without Positioner : Within 3% / With Positioner : Within 1%
Linearity
Without Positioner : Within ¡¾5% / With Positioner : Within ¡¾1%
Accessory
Option
Positioner
Electric per Pneumatic(E/P), Pneumatic per Pneumatic (P/P)
Air Set
Filter & Regulator
Solenoid V/V
3 Way 2 Port Seat Type Explosion Proof or Water Proof
Position Indicator S/W
Single Pole Double Through(SPDT), Double Pole Double Through(DPDT), Type Explosion Proof or Water Proof
Other Option
Air Lock Valve, Volume Booster Relays, Motion Transmitter, Current to pressure(E/P), Transmitter, Lubricator/lsolating valve, Other


(Unit:mm)
Valve size
(inch)
Actuator No. L (ANSI CLASS) E
(Body Center to
Bottom Flange)
H
(Body Center to
Actuator Upper)
¨ªD
150 RF 300 RF
¨ö SA-1DM, -1RM 184 194 100 400 218
SA-2DM, -2RM 475 267
¨ú SA-1DM, -1RM 184 194 100 400 218
SA-2DM, -2RM 495 267
1 SA-1DM, -1RM 184 194 100 400 218
SA-2DM, -2RM 475 267
1¨ö SA-1DM, -1RM 222 235 120 400 218
SA-2DM, -2RM 495 267
SA-1DM, -1RM 590 350
2 SA-1DM, -1RM 254 267 140 400 218
SA-2DM, -2RM 510 267
SA-3DM, -3RM 605 350
2¨ö SA-2DM, -2RM 276 292 160 545 267
SA-3DM, -3RM 670 350
SA-4DM, -4RM 875 470
3 SA-2DM, -2RM 298 317 180 565 267
SA-3DM, -3RM 685 350
SA-4DM, -4RM 890 470
4 SA-2DM, -2RM 352 368 210 565 267
SA-3DM, -3RM 703 350
SA-4DM, -4RM 910 470
5 SA-3DM, -3RM 403 473 240 715 350
SA-4DM, -4RM 945 470
6 SA-3DM, -3RM 451 473 270 740 350
SA-4DM, -4RM 970 470
8 SA-4DM, -4RM 543 568 300 1430 / 1540 520
SA-5DM, -5RM 1525 / 1630 620
10 SA-5DM, -5RM 676 451 400 1760 / 1890 620
12 SA-5DM, -5RM 737 543 445 1810 / 1940 620

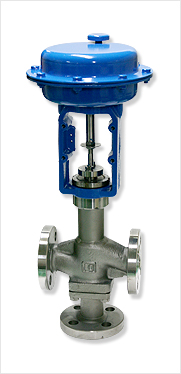

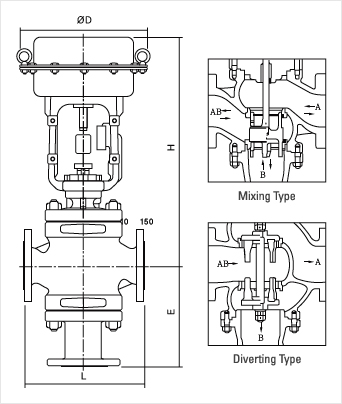

Valve Type 3 WAY GLOBE for Mixing & Diverting
Size Body inch ¨ö ¨ú 1 1 ¨ö 2 2 ¨ö 3 4 5 6 8 10 12
mm 15 20 25 40 50 65 80 100 125 150 200 250 300
Port inch ¨ö ¨ú 1 1 ¨ö 2 2 ¨ö 3 4 5 6 8 10 12
mm 15 20 25 40 50 65 80 100 125 150 200 250 300
Rated Travel (mm) 15 15 15 25 25 38 38 38 50 50 50 75 75
CV Value Contoured 4.0 6.3 10 23 40 63 90 160 250 360 600 930 1340
Contoured 6.0 9.0 13 27 46 72 100 165 270 400 660 1100 1400
Allowable Pressure
Drop (§¸f/§²)
Nor. 3.4 4.2 5.0 3.4 2.0 2.2 1.6 0.9 1.0 0.6 0.5 0.3 0.1
Max. 23.8 29.4 35.5 23.5 14.2 15.6 11.2 6.3 7.0 4.8 3.5 2.1 0.7
Rangeability
30:1
Applicable Pressure
KS(JIS) 10 ~ 20 §¸f/§²
ANSI 150 ~ 300 psi
DIN 5 ~ 16 bar
Applicable Temperature
-10 ~ 300¡É (14 ~ 572¢µ)
End Connection
R.F & F.F Flanged, Socket Welding, Butt Welding, Threaded, Etc
Material
Body
SCPH 2(A216 WCB), SCS 13(A351 CF8), SCS 14(A351 CF8M), Etc
Trim
SCS 14A(A351 CF8M), SCS 14A-Stellite Hardfacing, Etc
Packing
V-PTFE, Graphite, Etc
Gasket
STS 304+PTFE or Graphite Sprial Wound Ring
Type of Bonnet
Plane
Flow Characteristics
Linear, Quick Open, Etc
Seat Leakage Rate
Matal seat : ANSI B 16.104 IV(Less Then 0.01% of Cv Value)
Soft seat : ANSI B 16.104 VI(Less Then 0.0001% of Cv Value)
Actuator
Type
Mulit Spring for Single Acting Diaphragm Pneumatic Actuator
Action
Direct or Reverse Action
Size (Travel)
¨ª220(15), ¨ª270(15, 20), ¨ª350(20, 25) ¨ª470(25, 38, 50, 75)
Spring Range
0.2 ~ 1.0 or 0.8 ~ 2.4 (§¸f/§²)
Ambient Temperature
-30¡É ~ +70¡É (-22¢µ ~ 158¢µ)
Air Connection
PT ¨ù" Female Tap
Hand Wheel
Top Mounted, Side Mounted
Hysteresis
Without Positioner : Within 3% / With Positioner : Within 1%
Linearity
Without Positioner : Within ¡¾5% / With Positioner : Within ¡¾1%
Accessory
Option
Positioner
Electric per Pneumatic(E/P), Pneumatic per Pneumatic (P/P)
Air Set
Filter & Regulator
Solenoid V/V
3 Way 2 Port Seat Type Explosion Proof or Water Proof
Position Indicator S/W
Single Pole Double Through(SPDT), Double Pole Double Through(DPDT), Type Explosion Proof or Water Proof
Other Option
Air Lock Valve, Volume Booster Relays, Motion Transmitter, Current to pressure(E/P), Transmitter, Lubricator/lsolating valve, Other



(Unit:mm)
Valve size L H (Body Center
to Actuator Upper)
©ªD (Actualor Diamator)
inch mm SSC 13,
GC 200 / Glass LINED
GC 200 / Rubber Lined
FCD 40 / Teflon Lined
1/2 15 129 135 315 220
3/4 20 129 135 315 220
1 25 139 145 400 270
1 1/2 40 174 180 415 270
2 50 204 210 495 350
2 1/2 65 244 250 520 350
3 80 294 300 730 470
4 100 344 350 765 470
5 125 392 400 940 500
6 150 452 460 1550 650
Valve Size (inch) 1/2 3/4 1 1 1/2 2 2 1/2 3 4
Rated Cv Value
GC 200 / Rubber Lined
4.2 5.9 16.3 35.0 57.0 83.0 126.0 236.0
GC 200 / Glass Lined
5.2 9.0 14.0 40.0 57.0 110.0 150.0 260.0
GC 40 / Teflon Lined
5.2 9.0 14.0 40.0 57.0 110.0 150.0 260.0
SSC 13 / No Lined
6.0 8.2 15.9 45.0 88.0 99.0 176.0 228.0
Rated Travel (mm) 6 8 10 14 20 24 30 40

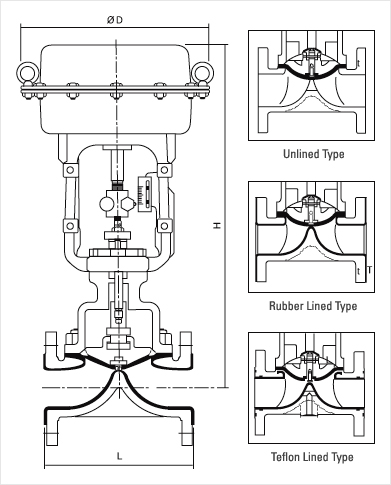

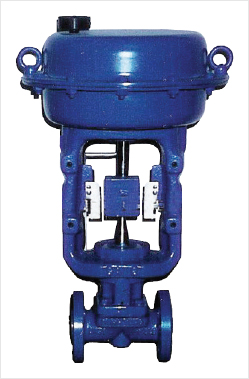

Valve Type 2 WAY DIAPHRAGM BODY for Weir
Size Body inch ¨ö ¨ú 1 1 ¨ö 2 2 ¨ö 3 4
mm 15 20 25 40 50 65 80 100
Rated Travel (mm) 0.6 ~ 40.0 (See to Table)
Rated Cv Value 4.2 ~ 260.0 (See to Table)
Allowable Pressure
Drop (§¸f/§²)
Max. 10 10 9 5 6 5 2 3
Nor. 10 10 10 10 10 9 9 6
Rangeability Rated Cv valve 4.2 to 260.0 : 20 : 1
Applicable Pressure
KS(JIS) 10 §¸f/§² ( ¨ö `~ 2")
ANSI 150 psi ( ¨ö `~ 2")
DIN 10 bar ( ¨ö `~ 2")
KS(JIS) 8 §¸f/§² ( 3 `~ 4")
ANSI 125 psi ( 3 `~ 4")
DIN 8 bar ( 3 `~ 4")
Applicable Temperature
0 ~ 180¡É (32 ~ 356¢µ)
End Connection
R.F & F.F Flanged, Etc
Material Body
Outer Stainless Steel(304 SS, 316 SS, 304L SS, 316 L SS), Hastelloy-C
Inner Teflon, Glass-reinford Teflon, Etc
Diaphragm
EPDM, Natural Rudder, Butyl Rubber
Neoprene, Viton, Hypalon Rubber
PTFE/(EPDM, Neoprene, Viton)
Type of Bonnet
Plane
Flow Characteristics
Equal Percentage, Linear, Quick-Opening, Etc
Seat Leakage Rate
ANSI B 16.104 IV(Less Then 0.01% of Cv Value)
Actuator
Type
Mulit Spring for Single Acting Diaphragm Pneumatic Actuator
Action
Direct or Reverse Action
Size (Travel)
¨ª220(15), ¨ª270(15, 20), ¨ª350(20, 25) ¨ª470(25, 38, 50, 75)
Spring Range
0.2 ~ 1.0 or 0.8 ~ 2.4 (§¸f/§²)
Diaphragm
Ethylene Propylene Rubber Reinforced Nylon
Ambient Temperature
-30¡É ~ +70¡É
Air Connection
PT ¨ù" Female Tap
Hand Wheel
Top Mounted, Side Mounted
Hysteresis
Without Positioner : Within 3%
With Positioner : Within 1%
Linearity
Without Positioner : Within ¡¾5%
With Positioner : Within ¡¾1%
Access
ory
Option
Positioner
Electric per Pneumatic(E/P), Pneumatic per Pneumatic (P/P)
Air Set
Filter & Regulator
Solenoid V/V
3 Way 2 Port Seat Type Explosion Proof or Water Proof
Position Indicator S/W
Single Pole Double Through(SPDT), Double Pole Double Through(DPDT), Type Explosion Proof or Water Proof
Other Option
Air Lock Valve, Volume Booster Relays, Motion Transmitter, Current to pressure(E/P), Transmitter, Lubricator/lsolating valve, Other
