Dongil-Engineering designs, produces and provides high quality electric actuator and services
related to industrial valve automation and controls.

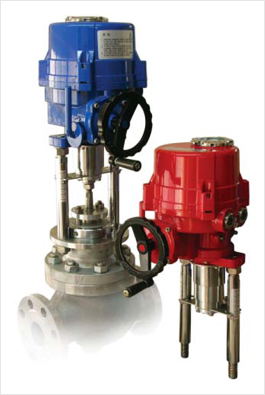

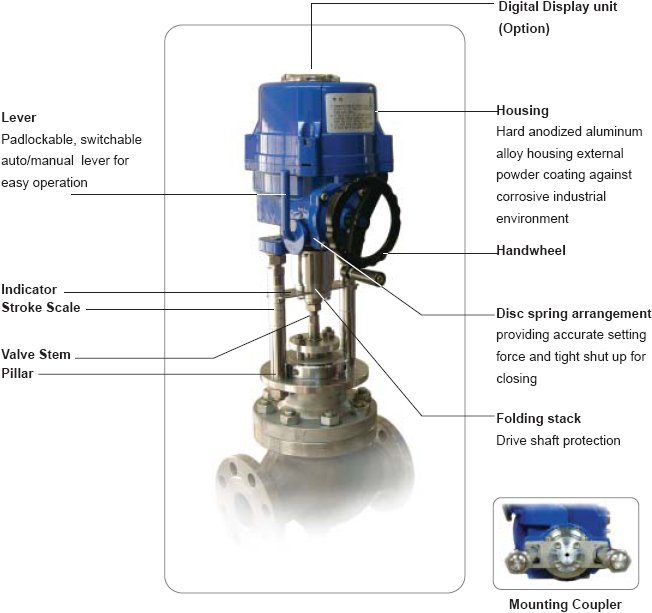

IQL series linear actuator has been developed for a wide range of linear applications and to
service reliable performance, long trouble free operation, more flexibility and maximized
ability to integrate fully into sophisticated control system. |
|
|
 |
 |
|
|
 |
Robust construction, precise positioning, reliable
performance |
|
Wide range of application |
|

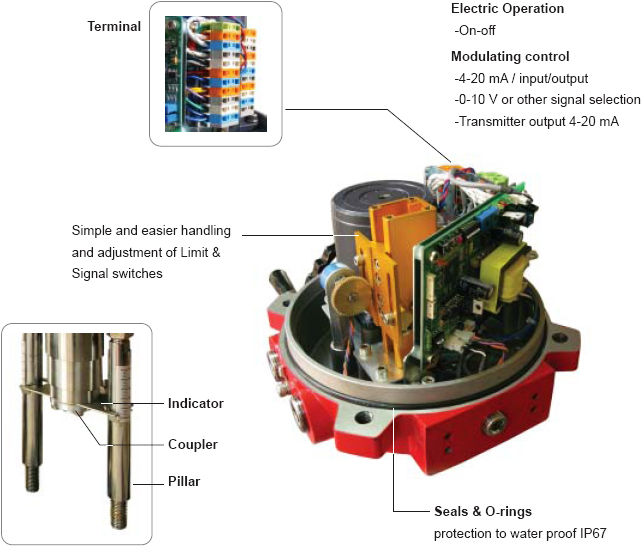

Compact internal Arrangement |
|

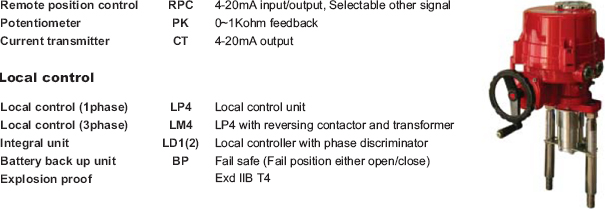

Modulating control options can be installed on site |
|
Local control options for easy commissioning and
emergency operation in the field |
|
 |
|
|
|
 |
|
|
 |
|
 |
|
|
 |
|
 |
|
|
 |
|
 |
|
|
 |
|
 |
|
|
 |
|
 |
|
|
 |
|
 |
|
|
|
|
|
 |
|
 |
|
|
 |
|
 |
|
 |
|
|
 |
|
|
