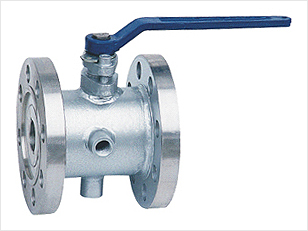

PART NAME MATERIALS
BODY
SCS * CF *
SEAT RING CASE
SCS * CF *
RETAINER
SCS * CF *
BALL
SCS * CF *
STEM
SUS *
SEAT RING
TEFLON
GLAND RING
SUS 304
GLAND FLANGE
SCS 13
HAND LEVER
FCD 40
STOPPER
SUS 304
SNAP RING
CARBON TOOL STEEL
PACKING
TEFLON
STEM WASHER
TEFLON
O-RING
VITION
JACKET
SUS 304
DRAIN PLUG
SUS 304
*
JIS ANSI
SCS 13 CF 8 SUS 304
SCS 14 CF 8M SUS 316
SCS 16 CF 3M SUS 316L
SCS 19 CF 3 SUS 304L
SCS 23 CN 7M Alloy 20
(Unit:mm)
SIZE in ½×1½ 1×2 1½×2½ 2×3 2½×4 3×5 4×6 5×8 6×8 8×10
mm 15×40 25×50 40×65 50×80 65×100 80×125 100×150 125×200 150×200 200×250
10K
(150#)

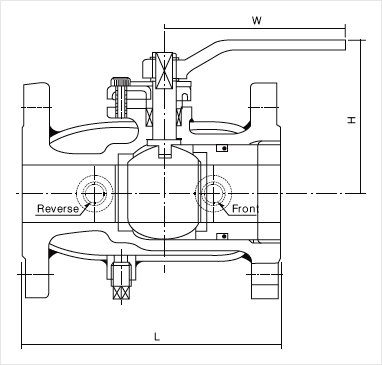

L 120 127 165 178 190 203 229 254 267 457
H 115 132 183 190 197 205 215 230 275 400
W 130 160 230 230 230 370 450 600 600 800
Water Disribution Pipes
Industrial Cleaning Machines
Sterillzers, Boilers
Air conditioners, Water Fiters
Medical Equpments, Vacuum Packing
Food & Beverage Lines
Vacuum Distribution Pipes
VALVE SIZE 50A ~ 200A
ACTATOR DI-AP TYPE
BODY Material SCS13 / SCS14 / SCS16
BALL Material SCS13 / SCS14 / SCS16
SEAT Material PTFE, RTFE, METAL
Rating Type FLANGE TYPE
ACTUATOR Type DOUBLE ACTING / SPRING RETURN
Jacket Con't SCR'D / FLANGE
Jacket SUS 304
Operating Pressure 4-7㎏f/㎝2
Rotating Angle 90′± 3'
Fluid Temperature 10 ~ 90℃ (- 10 ~ 290'C)
Operating Media Compressed Dry Air
Accessory (옵션) Solenoid valve, Limit switch box, Air filter Regulator, E-P Positioner
