YOKE : Fixing kit for mounting actuator on valve bodies
COUPLING : Kit for connecting actuator’s output shaft and valve stem Yoke and coupling are well designed to prevent from decentering and influence of fluid temperature in valve Various types of yoke and coupling are available as standard application.

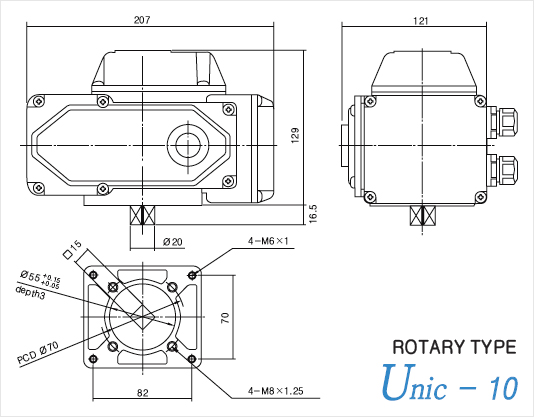

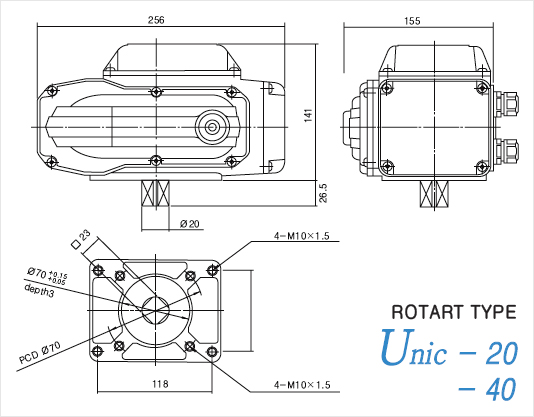

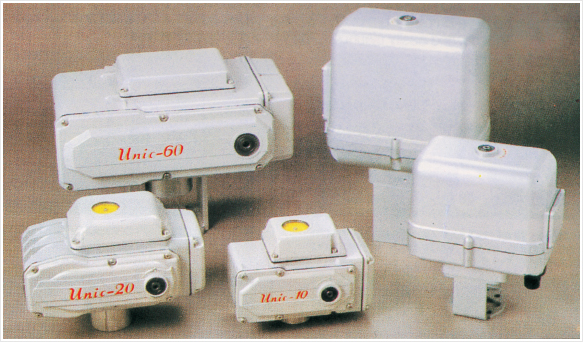

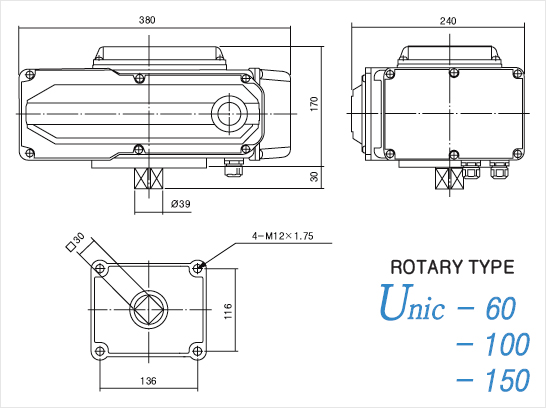

ROTARY TYPE UNIC SERIES
  UNIC-10 UNIC-20 UNIC-40 UNIC-60 UNIC-100 UNIC-150
OUTPUT SHAFT TORQUE
10kgf.m 20kgf.m 40kgf.m 60kgf.m 100kgf.m 150kgf.m
POWER
AC100V.200V SINGLE PHASE 50/60Hz
OPERATION ANGLE
0~90。
TRAVEL TIME
30SEC.AT 50Hz 45
MOTOR
20W 30W 60W 90W 100W 100W
PROTECTOR
BUILT-IN THERMAL PROTECTOR(AUTO.RESETTING TYPE)
AMBIENT AIR TEMPERATURE
-25。TO 55℃
INSULATION RESISTANCE
100MΩ (500V.DC)
WITHSTAND VOL TAGE
1500VAC / minute
MANUAL OPERATION
DETACHABLE CRANK HANDLE (STANDARD ACCESSORY)
STOPPER
IN ELECTRIC OPERATION : FULL OPEN/CLOSE LIMIT SWITCH
IN MANUAL OPERATION : MECHANICAL STOPPER
DRIP PROOF
TO IP-55
MOUNTING ANGLE
ALL DIRECTION
BODY MATERIAL
ALUMINUM ALLOY DIECAST ADC-12
WEIGHT
4.5kg 7.8kg 8.5kg 20kg 21kg 22kg
WIRING CONDUIT
PF 1/2×2 RESIN WATER-PROOF CONDUITS

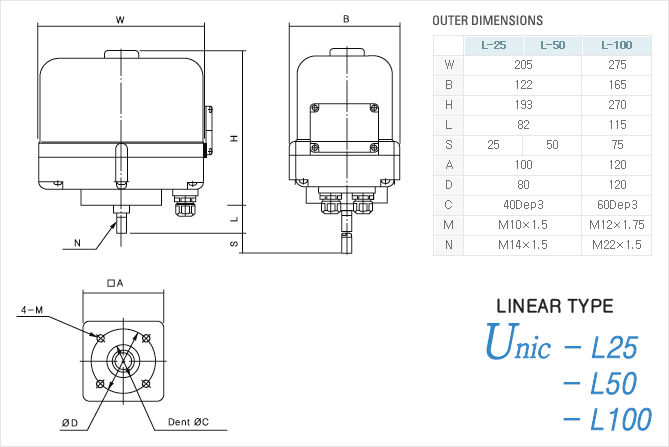

ROTARY TYPE UNIC SERIES
  UNIC-L25 UNIC-L50 UNIC-L100
THRUST
200kgf 500kgf 1,200kgf
POWER
AC100V.200V SINGLE PHASE 50/60Hz
STROKE
0-27mm 0-50mm 0-75mm
SPEED
1.4mm/SEC.
MOTOR
20W 30W 90W
PROTECTOR
BUILT-IN TORQUE LIMITER,BUILT-IN THERMAL PROTECTOR
AMBIENT AIR TEMPERATURE
-25。TO 55℃
INSULATION RESISTANCE
100MΩ (500V.DC)
WITHSTAND VOL TAGE
1500VAC
MANUAL OPERATION
DETACHABLE CRANK HANDLE (STANDARD ACCESSORY)
STOPPER
IN ELECTRIC OPERATION : OPEN/CLOSE LIMIT SWITCH
IN MANUAL OPERATION : MECHANICAL STOPPER
DRIP PROOF
IP-55
MOUNTING ANGLE
ALL DIRECTION
BODY MATERIAL
ALUMINUM ALLOY DIECAST ALUMINUM DIECAST
WEIGHT
6.5kg 6.5kg 16kg
WIRING CONDUIT
PF 1/2×2 RESIN WATER-PROOF CONDUITS

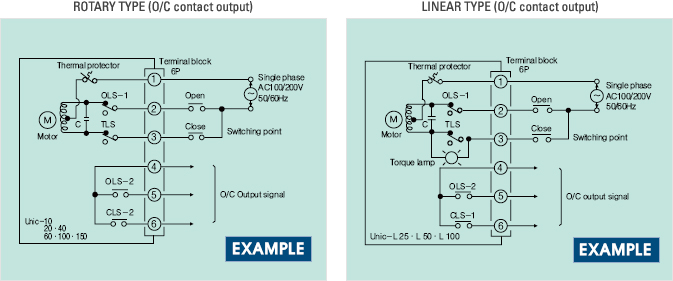

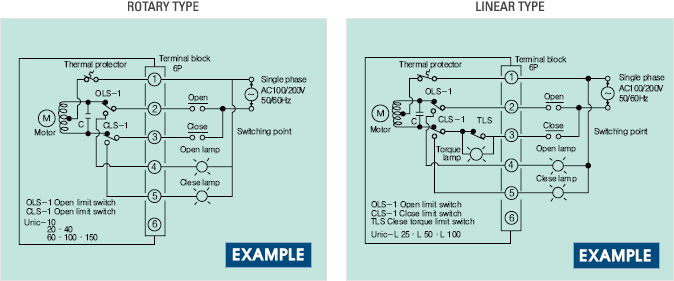

OPTIONAL PARTS - AVAILABLE UPON REQUEST -

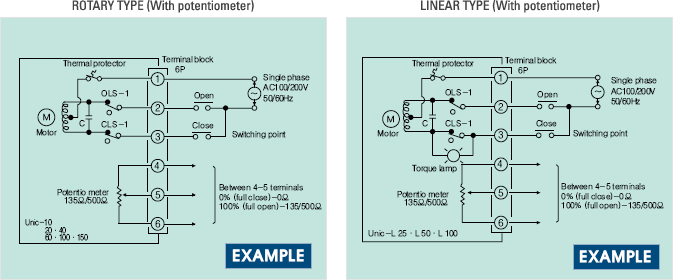

POTENTIO METER 135/500Ω
FULL OPEN/CLOSE INTERMEDIATE SPARE LIMIT SWITCH 2PCS.
R/I CONVERTER 4-20 ㎃ DC
TORQUE LIMITER (STANDARD ACCESSORY FOR LINEAR TYPE)
SPACE HEATER
For electronic control actuator, please refer to NUCOM series

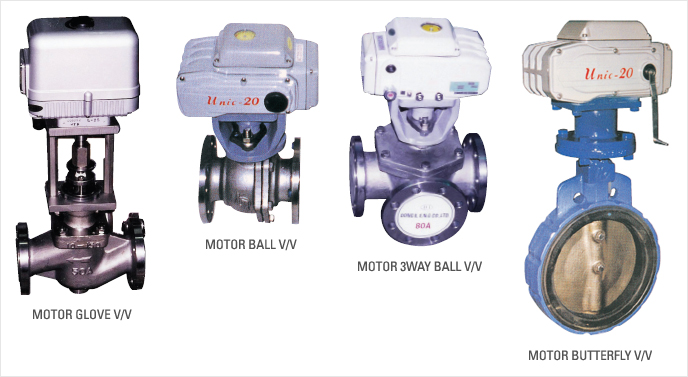

MOTOR VALVE는 고성능 제어능력을 가지고 있다.
유지비 저렴, 고장율 및 내구성이 우수하고 견고하여 여러 산업범위에 사용되고 있으며, 특히비례식 제어밸브는 분해 능력이 우수하여 정밀제어가 용이하며 응답속도로 거리에 관계없이 일정함으로 정확하게 콘트롤을 할 수 있다.
밸브 및 액추레이터는 콤펙트하고 소경량이므로 좁은 장소에서도 설치가 용이하다 전원공급 크랭크핸들로 수동조작도 가능하다.

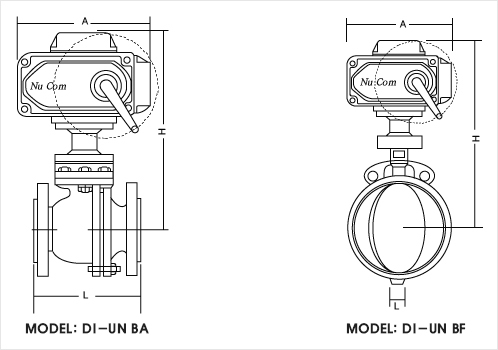

BALL VALVE(10K / 150Lb) BUTTERFLY VALVE(10K / 150Lb)
SIZE L H A
mm INCH
15A ½" 108 200 158
20A ¾" 117 205 158
25A 1" 127 210 158
40A 1-½" 165 240 207
50A 2" 178 290 207
65A 2-½" 190 320 207
80A 3" 203 350 256
100A 4" 229 380 256
125A 5" 356 420 256
150A 6" 394 470 380
SIZE L H A
mm INCH
15A ½" 33 300 158
20A ¾" 43 300 158
25A 1" 46 310 158
40A 1-½" 46 345 207
50A 2" 52 355 207
65A 2-½" 56

380

207
80A 3" 56 410 256
100A 4" 60 440 256
125A 5" 68 540 256
