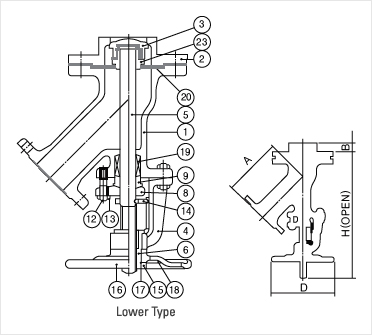

NO. PARTS NAME
1
BODY
2
BONNET
3
DISC
4
YOKE
5
STEM
6
SLEEVE
8
GLAND FLANGE
9
GLAND RING
12
GLAND BOLT
13
GLAND NUT
14
PIN
15
WHEEL NUT
16
HAND WHEEL
17
SET SCREW
18
NAME PLATE
19
PACKING
20
GASKET
23
DISC NUT
FACE TO FACE

FLANGE DIM'N
ANSI B16.5
BASIC DESIGN
MAKER STANDARD
TEST
REQUEST

* (a×b)⇒a:Out Let Flange Size(Normal Pipe Size) b : In Let Flange Size
CLASS a×b 1×1 1/2 1 1/4×2 1 1/2×2 2×2 1/2 2 1/2×3 3×4 4×5 5×6 6×8 8×10 10×12
10㎏/㎠
&
150 PSI
A 125 135 140 165 190 215 230 260 300 320 390
B 30 35 38 45 50 64 76 90 100 115 120
H 282 305 354 410 456 489 530 723 822 830 850
D 100 125 140 180 180 200 250 300 350 400 450

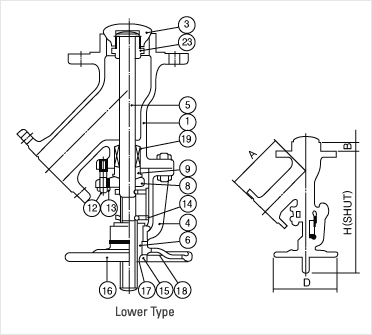

NO. PARTS NAME
1
BODY
3
DISC
4
YOKE
5
STEM
6
SLEEVE
8
GLAND FLANGE
9
GLAND RING
12
GLAND BOLT
13
GLAND NUT
14
PIN
15
WHEEL NUT
16
HAND WHEEL
17
SET SCREW
18
NAME PLATE
19
PACKING
23
DISC NUT
FLANGE DIM'N
ANSI B16.5
BASIC DESIGN
MAKER STANDARD
TEST
REQUEST

* (a×b)⇒a:Out Let Flange Size(Normal Pipe Size) b : In Let Flange Size
CLASS SIZE 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12
10㎏/㎠
&
150 PSI
A 125 135 140 165 190 215 230 260 290 320 390 435
B 30 35 38 45 50 64 76 90 100 115 120 135
H 264 288 326 368 406 432 508 610 711 750 850 910
D 100 125 140 180 180 200 250 300 350 400 450 600




PART NAME MATERIALS
BODY
SCS * CF *
YOKE
SCS * CF *
DISC
SCS * CF *
STEM
SUS *
DISC GLAND
SCS * CF *
GLAND FLANGE
SCS 13
GUIDE
SCS 13
GUIDE PIN
SUS 304
YOKE BOLT & NUT
SUS 304
GLAND BOLT & NUT
SUS 304
PACKING
ASBESTOS+TEFLON
CYLINDER ASS'Y

ACCESARY부착은 주문자의 요구에 따라 협의 부착함.
SOLENOID VALVE
LIMIT S/W
AIR UNIT
E/P POSITIONER
주문시에 사용전압을 명기하여야 함.
*
JIS ANSI
SCS 13 CF 8 SUS 304
SCS 14 CF 8M SUS 316
SCS 16 CF 3M SUS 316L
SCS 19 CF 3 SUS 304L
SCS 23 CN 7M Alloy 20
(Unit:mm)

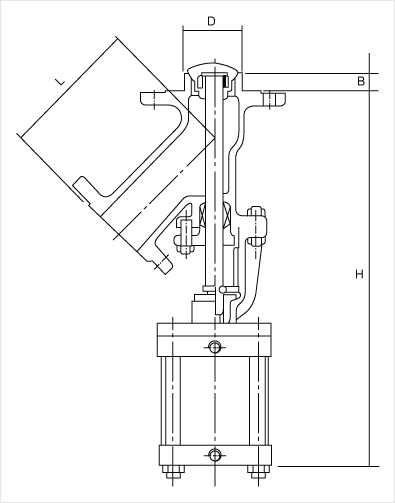

SIZE in 1×1½ 1½×2 2×2½ 2×3 2½×3 3×4 4×5 5×6 6×8 8×10 10×12
mm 25×40 40×50 50×65 50×80 65×80 80×100 100×125 125×150 150×200 200×250 250×300
10K
(150#)
L 125 140 165 190 190 230 260 290 300 350 400
H 390 420 450 450 500 530 630 780 800 920 1150
B 30 38 45 50 50 64 76 90 100 115 120
D 30 35 35 35 35 35 35 40 40 50 50
